Canon nFD 70-210mm f/4 Macro

The Canon nFD 70-210mm f/4 Macro was introduced in October 1980 during the golden era of Canon’s manual focus FD system. At the time, it represented a compact and versatile telephoto zoom option for photographers who wanted flexibility without sacrificing optical quality. Despite being an impressive lens for its era, it had a relatively short production life. By 1985, Canon replaced it with the newer nFD 80-200mm f/4 L, shifting toward its premium “L” telephoto lineup. The Canon nFD 70-210mm f/4 Macro is a compact constant-aperture telephoto zoom lens introduced in 1980 for the Canon FD mount system. Its push-pull design, macro capability, and Super Spectra Coating make it one of the most versatile and affordable vintage Canon zoom lenses available today.

LENS SPECS

Release Date: October 1980
Format: 35mm
Mount: Canon FD
Filter: 58mm
Aperture Blades: 8
Aperture Range: 4 - 32
Min Focus Distance: 0.44m
Weight 705g
Optical Design: 12 elements in 8 groups
Coating: Canon Super Spectra Coating (SSC)
Weather Sealing: No
Lens IS.: No
APS-C Conversion Approx.: 112 - 336mm

Design & Build

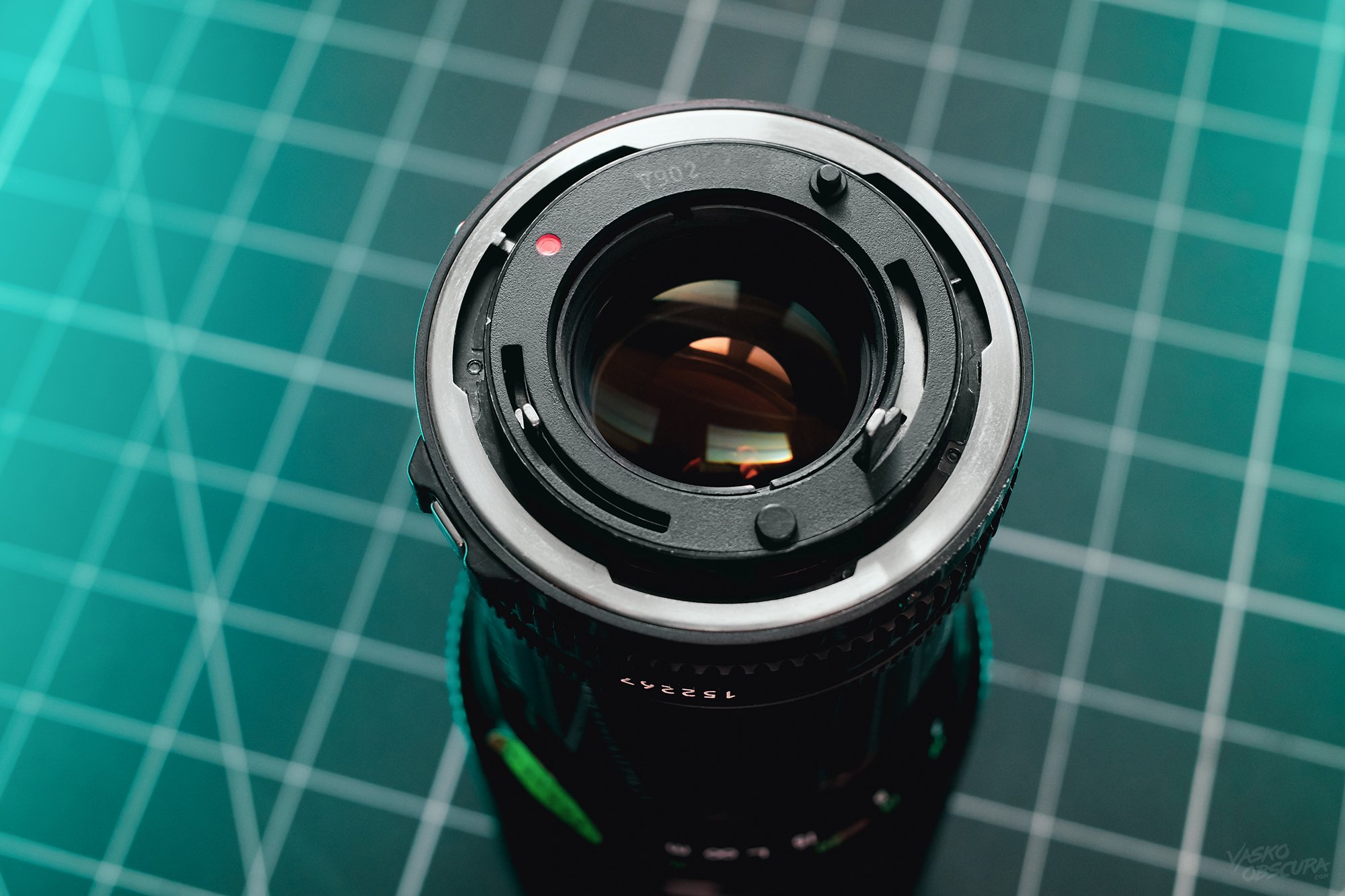

This lens features Canon’s “new FD” (nFD) mount design, lighter and more modern than the earlier breech-lock FD lenses. The nFD update reduced weight while maintaining solid mechanical construction, making it more travel-friendly and easier to handle. One of its defining characteristics of this lens is the push-pull zoom mechanism. Instead of separate rings for zooming and focusing, a single control ring handles both functions. Slide the ring forward or backward to zoom, and rotate it to focus. While push-pull designs aren’t for everyone, they allow for quick focal length adjustments and smooth operation once you get used to the feel. The lens offers a 3x zoom ratio, covering a very practical telephoto range from 70mm to 210mm, ideal for portraits, events, compressed landscapes, and detail shots.

Here is a picture of the Sigma 70-210mm f/4.5 Macro mounted on the Canon AE-1 Program and the Canon nFD 70-210mm f/4 Macro (with Fotodiox adapter) mounted on the EOS R5 Mark II. The Canon 70-210mm is considered a small compact short telephoto zoom lens but Sigma really took the cake with its even more compact design.

Just for Fun

The number one song in the US in October 1980 at the time of this lenses launch was: 🎵 Another One Bites the Dust by Queen

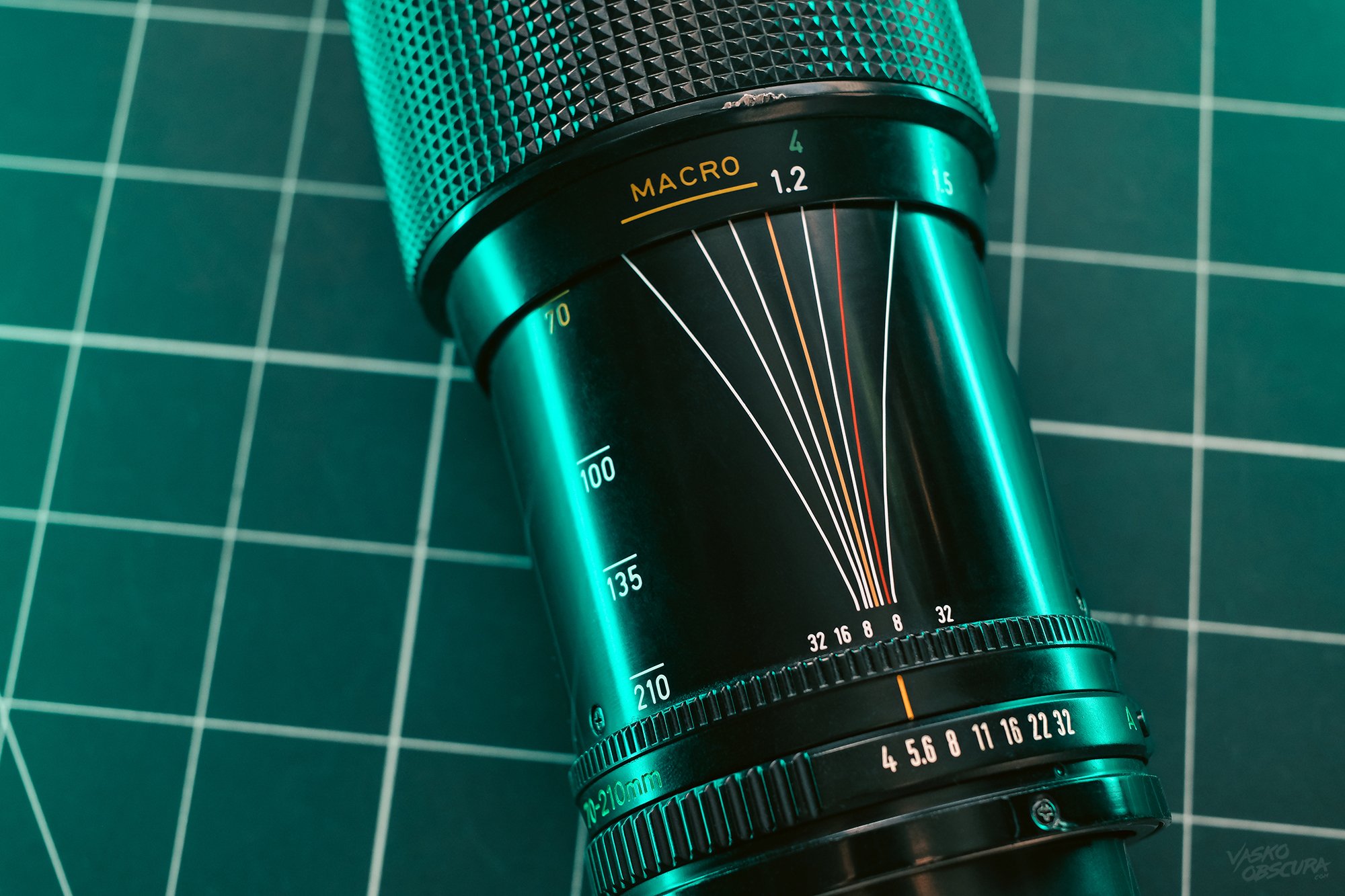

Macro Capability

One of the standout features of the Canon nFD 70-210mm f/4 Macro is its built in macro mode. At 70mm, the lens can focus down to a minimum focusing distance of 44cm (approximately 1.4 feet). This gives it surprisingly strong close-up capability for a telephoto zoom of its era, making it a versatile option for flowers, product details, and small subjects without needing a dedicated macro lens. While it doesn’t achieve true 1:1 macro reproduction, it offers impressive close-focus performance that expands its usability beyond typical telephoto applications.

Optical Construction & Coatings

The lens is constructed with 12 elements in 9 groups, a fairly sophisticated optical formula for a compact telephoto zoom from the early 1980s. It also features Canon’s Super Spectra Coating (SSC), which was designed to reduce flare and improve contrast, particularly important in backlit conditions. Like many lenses from this period, sharpness improves when stopped down. However, in real-world use, the nFD 70-210mm f/4 performs surprisingly well even wide open at f/4. For a vintage zoom lens, its performance still holds up respectably against modern standards, especially considering its age and price point. For an optical performance review of this lens read this post next.

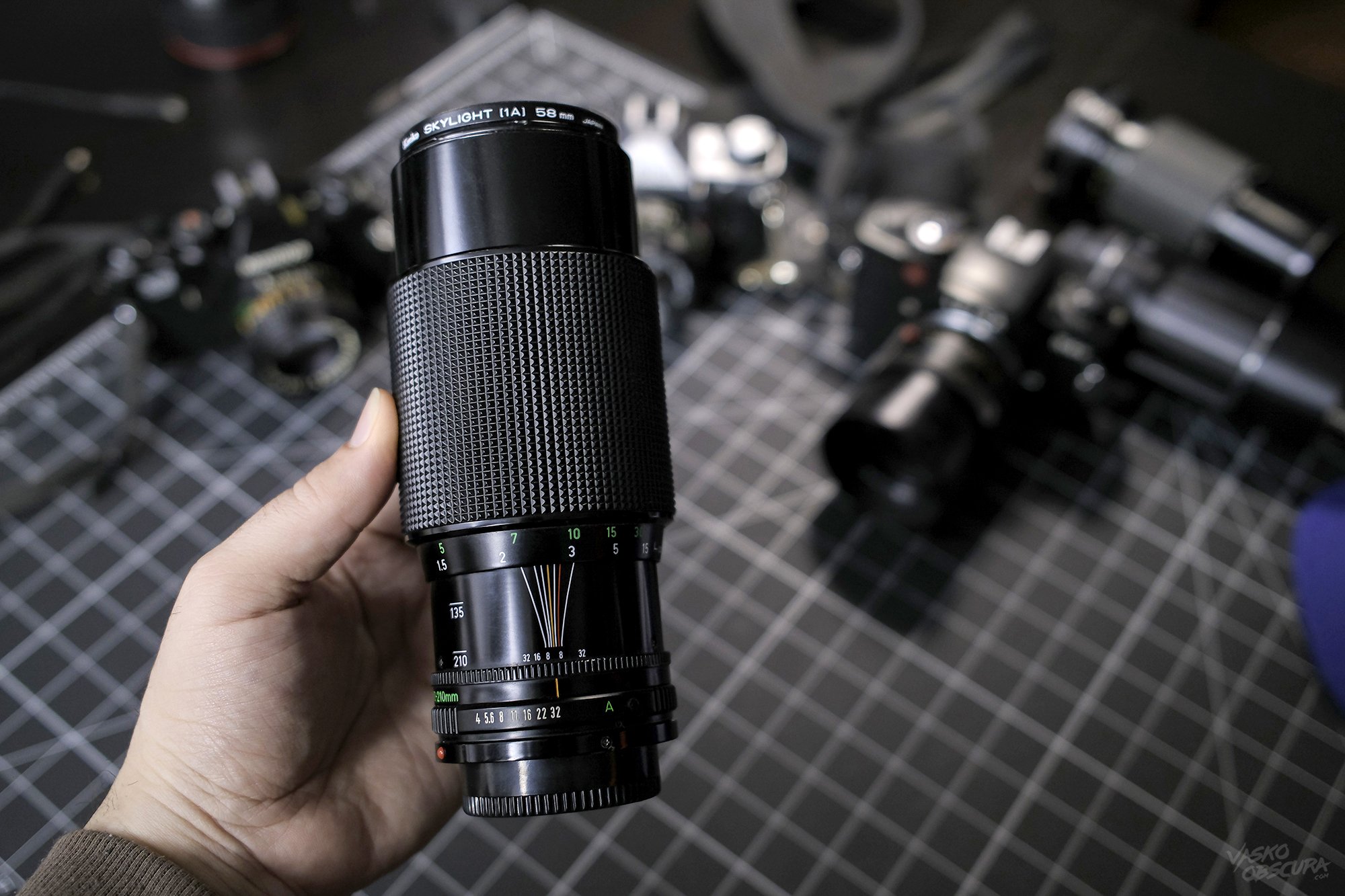

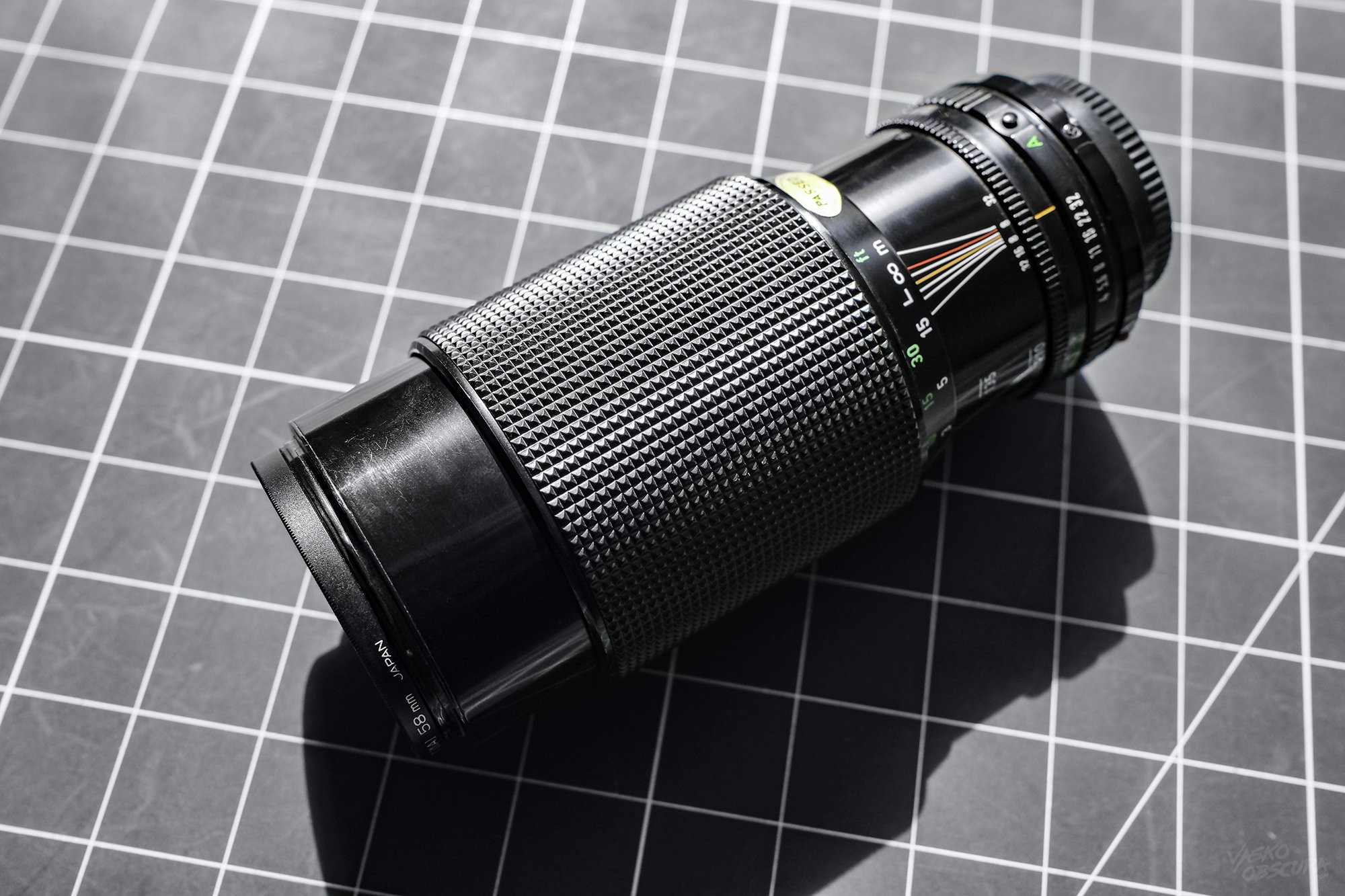

GEAR SHOTS

Size, Weight & Handling

One of the most appealing aspects of this lens is its compact design. Compared to many modern telephoto zooms, it feels small and well balanced, particularly when adapted to mirrorless bodies. The constant f/4 aperture across the zoom range also makes exposure consistent while shooting, a useful feature for both photography and video.

Value in Today’s Market

Perhaps the most impressive part of the Canon nFD 70-210mm f/4 Macro story is its affordability. On the used market, this lens can often be found for around $50, making it one of the best value vintage telephoto zoom lenses available. Surprisingly, this is one of the few vintage lenses that hasn’t climbed in value over the recent vintage lens crazy. For photographers exploring Canon FD glass or experimenting with adapted lenses on modern mirrorless cameras, it offers excellent performance for very little investment.
